Product Description:

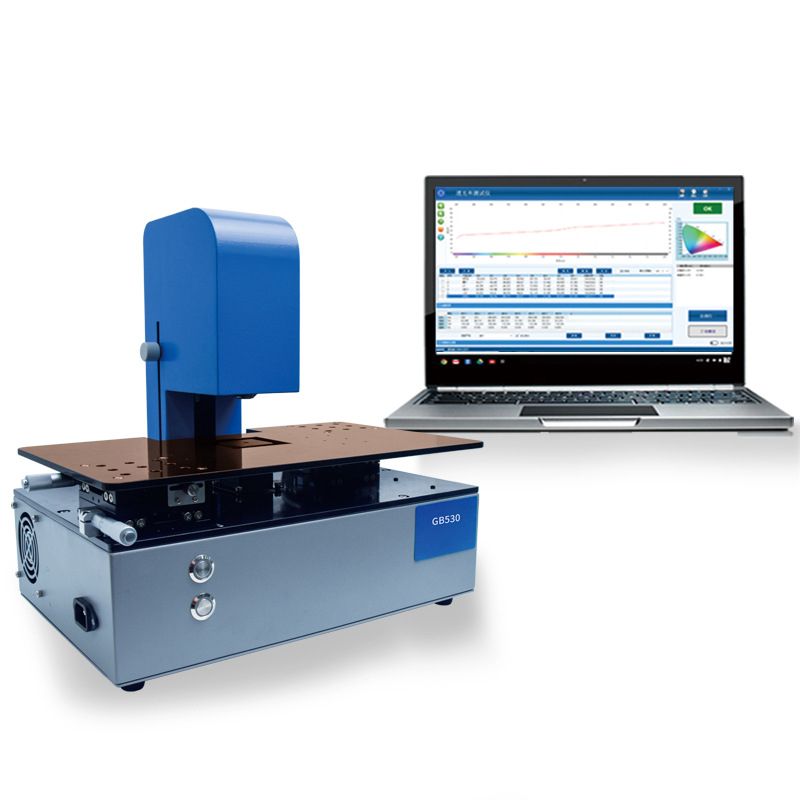

GB530 integral transmittance meter is applied to transparent and translucent transmittance measurement of films, mobile phone screens, display screens, glass lenses, frosted materials, glue, ink, coated lenses (including flat, spherical, aspherical surfaces), etc., with integrating sphere device .

Product Characteristics：?

l This instrument can quickly measure the transmittance of various types of planar and non-planar optics, resins, and films. It is suitable for full inspection of batch samples. It is a convenient measuring fixture. After a simple adjustment, manual hole alignment is not required for large batches, and measurement can be done immediately after placement. Maximum efficiency;

l It adopts high-quality grating and the overall sealed design of the optical path to ensure that the instrument has ultra-low stray light and high-quality tungsten halogen lamps;

l The fastest to use, the simplest operation, one click, direct data reading, and immediate measurement after playing the film;

l Accurately detects the 400-1000nm spectrum in a wide range , and actually extends to 380-1050nm. The transmittance of each band can be displayed. In addition to the direct display of all spectral curves in real time, the transmittance of single point wavelengths can be set , such as 550nm , 850nm , 940nm transmittance, and the set interval wavelength such as (400-800nm) Transmittance ;

l The instrument automatically calibrates and measures easily. The data is consistent with imported instruments and the quality is reliable. Standard calibration sheets are also provided to ensure users can use it with confidence;

l It can simultaneously record sample spectra, save measurement results in batches, load saved measurement data, and generate comparison spectra to achieve process comparison;

l Automatically generate user measurement reports in word and excel formats;

l The platform space can accommodate measurement samples of different sizes;

l The large platform measurement space is not only convenient for user operation, but also enables large-volume sample measurement by installing fixtures;

l Single-point coefficient correction and interval coefficient correction, two correction methods, are used to compare the differences caused by benchmarking and testing with different brands of instruments ;

l The instrument has a one-year warranty .

Product Parameters：

Packing List:?
